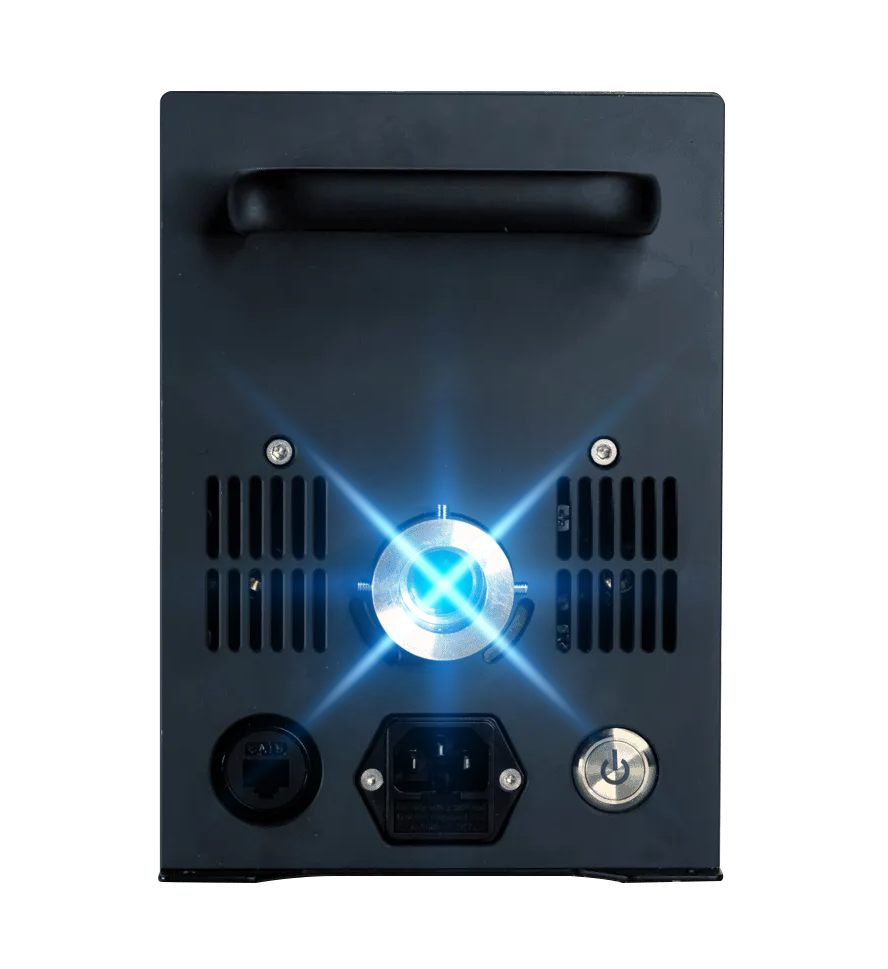

The TALON LED Illumination System is a multi-channel solid-state illumination system designed to support the most demanding imaging techniques in semiconductor optical inspection and life sciences.
Featuring unmatched brightness, pulsing speeds, and a wide range of wavelengths, TALON delivers exceptional performance at a lower price per channel – making cutting-edge performance possible for budget-conscious OEMs.
TALON is customer-customizable and field-calibratable to meet and maintain robust and reliable performance specifications.
Product Specifications
Power Input
100-264 VAC, 50-60Hz – Up to 500 Watts (depending on configuration)
Processor Operating Frequency
~760 kHz for flicker minimization
Optical Specifications
Spectral Peaks and Bandwidth (specify – multiple options available)
Strobing
Set pulse period, pulse duration, and # pulses by channel – trigger by command or TTL
Dimming Range
1%–100% with 4096 levels of resolution
Angular Uniformity And Distribution
Low-angle uniform irradiance
Environmental Specifications
Temperature: 0°C to 40°C (Operating) / -10°C to 70°C (Storage) Humidity 0–20% RH / 10–80% RH (Storage)
Vibration Resistance
1G operating, 3G transport
Communications Specifications
Ethernet: Provides high-speed connectivity for command and data exchange
USB
Enables plug-and-play operation with compatible devices
RS-232
Offers reliable serial communication for integration with legacy systems
Key Benefits
Long lifespan and no recurring bulb replacement costs.
Mercury-free and energy-efficient LED technology. Consumes less energy with less downtime.
Over 4,000 dimming steps (across user-configurable power range).
Calibrated to provide linear (dimming level vs. radiometric output) output.
Extremely low levels of flicker (-50dB).
Long MTBF.
